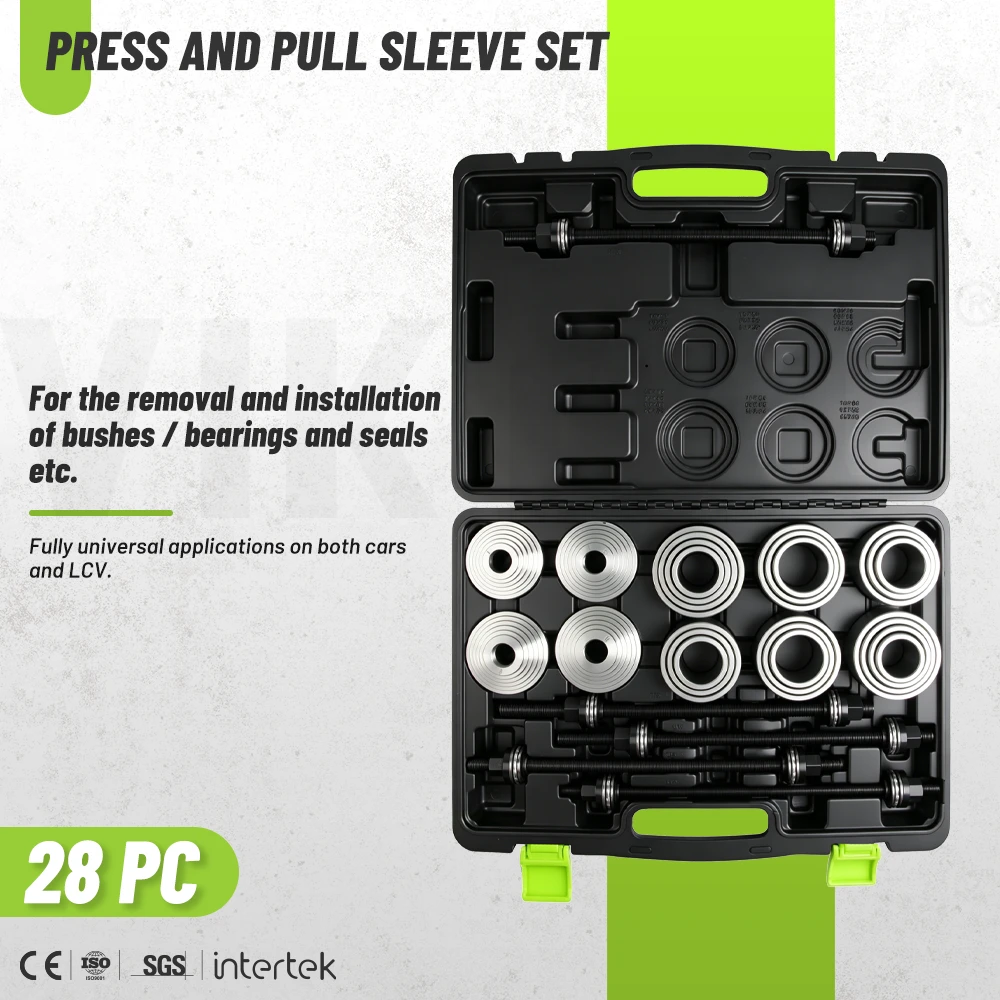

28PC Universal Press and Pull Sleeve Set for Bush Bearing Seal Removal and Installation
28PC Universal Press and Pull Sleeve Set for Bush Bearing Seal Removal and Installation
Feature
Universal Press and Pull Tool Set
This 28-piece press and pull sleeve set is designed for removing and installing bushes, bearings, seals and other press-fit components.
Suitable for Cars and LCVs
Fully universal application for passenger cars and light commercial vehicles, making it ideal for professional workshops and garages.
22 Durable 40CR Steel Sleeves
Includes 22 press sleeves made from 40CR steel, providing high strength, durability and reliable performance during repeated pressing and pulling work.
Wide Sleeve Size Coverage
Covers inside diameters from 34mm to 72mm and outside diameters from 44mm to 82mm, suitable for many different bearing and bush sizes.
Specification
Product Name: 28PC Press and Pull Sleeve Set
Application: Bush removal and installation, bearing removal and installation, seal replacement, press-fit component service
Tool Type: Universal press and pull sleeve kit
Quantity: 28 pieces
Vehicle Application:
Universal use for cars and light commercial vehicles
Sleeve Material: 40CR steel
Press Sleeves:
22 pieces
Inside Diameter Range:
34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm, 62mm, 64mm, 66mm, 68mm, 70mm, 72mm
Outside Diameter Range:
44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm, 62mm, 64mm, 66mm, 68mm, 70mm, 72mm, 74mm, 76mm, 78mm, 80mm, 82mm
Pulling Spindles:
4 pieces with nuts
Spindle Sizes:
M10, M12, M14, M16
Stop Plate Discs:
Disc 1 for 34mm, 42mm, 50mm, 58mm, 66mm sleeves
Disc 2 for 36mm, 44mm, 52mm, 60mm, 68mm sleeves
Disc 3 for 38mm, 46mm, 54mm, 62mm, 70mm sleeves
Disc 4 for 40mm, 48mm, 56mm, 64mm, 72mm sleeves
Suitable For:
Bearing bush
Silent bearing
Hydraulic bearing
Rubber bearing
Seals
General press-fit parts
Function:
Removes bushes
Installs bushes
Removes bearings
Installs bearings
Removes and installs seals
Supports universal press and pull operations
