Rear Trailing Arm Bush Tool Set for Ford Mazda Volvo

Rear Trailing Arm Bush Tool Set for Ford Mazda Volvo

Produktcode	VT01638D
Anwendungen	For rear trailing arm bushing service on selected Ford Focus and C-Max, Mazda 3 and Mazda 5, and Volvo S40 II and V50 applications. Verify model year before use.
Funktion	Removes and installs rear trailing arm bushings directly on the vehicle using a screw-driven press frame and dedicated sleeves, reducing the need to remove the trailing arm.
Material	Steel construction.
Verpackung	Blasformgehäuse
OEM-Optionen	Logo/Farbe/Verpackung/Handbuch / Kit-Kombination
Mindestbestellmenge	Basierend auf dem Produkt
Lieferzeit	30-45 Tage / Lagerartikel verfügbar

Beschreibung:

Designed for the removal and installation of rear trailing arm suspension bushings on selected Ford, Mazda and Volvo vehicles. The tool uses a screw-driven press frame together with dedicated removal and installation sleeves to apply controlled axial force to the bushing while the trailing arm remains on the vehicle. The application range covers commonly serviced Ford Focus and C-Max, Mazda 3 and Mazda 5, and Volvo S40 II and V50 platforms. The set is supplied in a blow mold case for organized storage, transport and workshop use.

Lieferumfang：

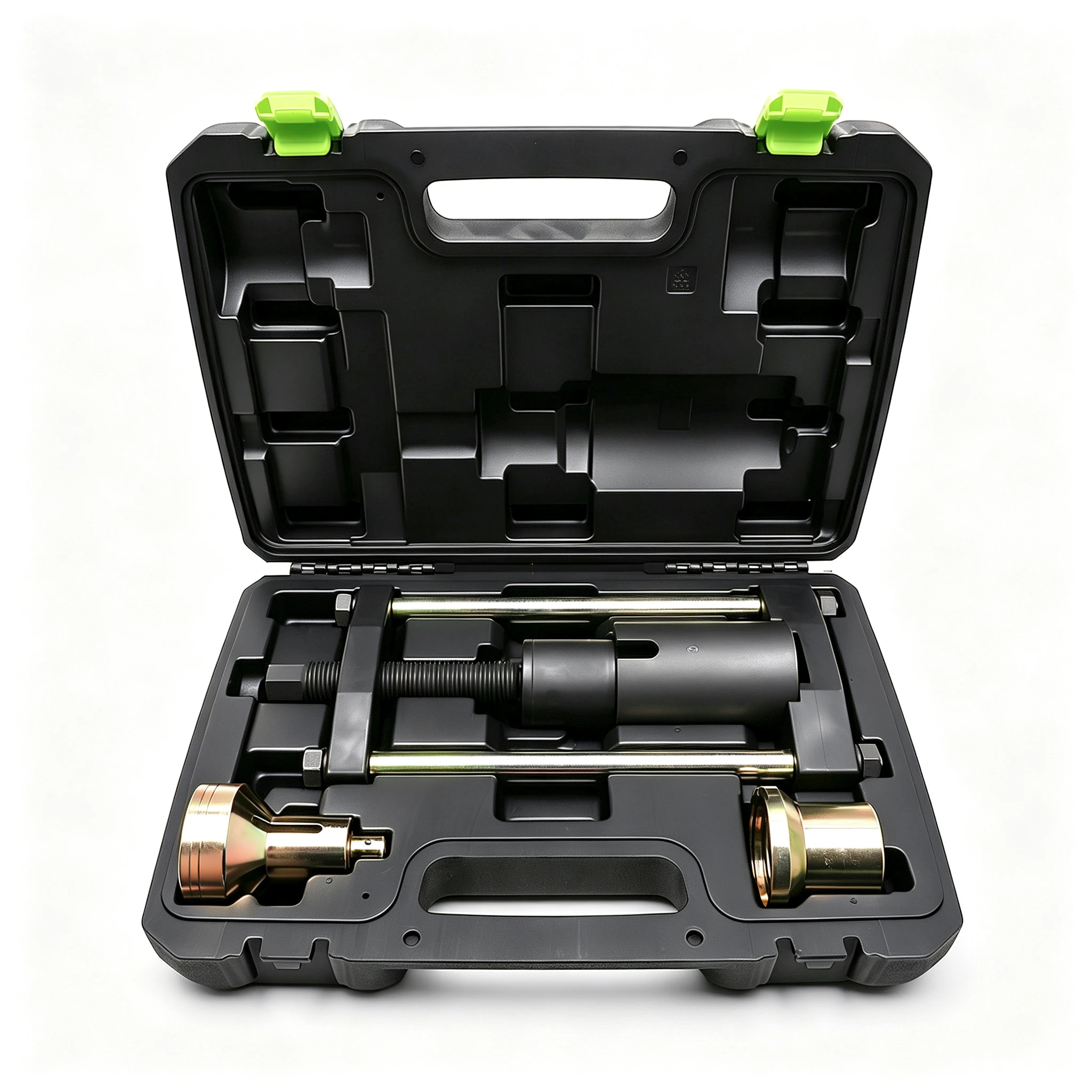

1PC Press Frame Assembly / 1PC M22 × 2.5 Threaded Spindle, 170mm Length, 16mm Hex Drive / 1PC Press-in Casing Sleeve, 74mm Height, 71.6mm OD, 53.8mm ID / 1PC Squeeze Casing Sleeve, 70.7mm Height, 58.3mm OD, 46.8mm ID / 1PC Step Press Adapter / 1PC Blow Mold Case
